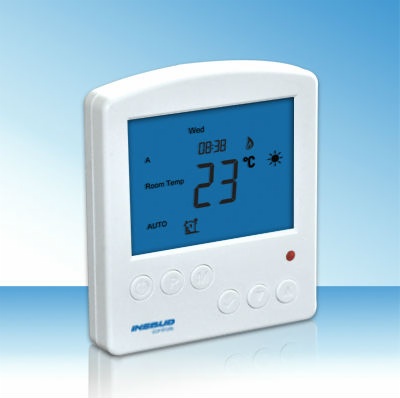

Digital thermostat for floor heating TR3100EU

Item Code:TR3100EU Features:LCD Room thermostat for floor heating radiant floor heat, 7 day / 5+2 day programmable 16amp resistive load 2 year warranty
  • Description
  • User Manual
  • Brochure







5/2 day and 7 day programmable ,

suitable for European wall box

> Large LCD display
> Extra slim and compact control panel
> Can switch up to 16 amps, (230v AC, 120v Ac available)
> Can be either an air only / floor only / Air & Floor
> 5/2 day and 7 day programmable mode selectable
> Temporay override and vacation mode
> Frost protection function
> Blue back light
> white,silver ,granite finishes
> F / C temperature format can be selected
> 12/24 Hour clock format can be selected
> programmes and settings can be reserved after power break
> equipped with air and floor sensor
> Floor temperature limit
> Adjustable switching differential
> Firmware can be upgraded
> Customizing welcome

Specifications

* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)


Specifications

* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)
