remote control thermostat TR3100RC

Item Code:TR3100RC Features:thermostat with remote control function programmable thermostat floor heating thermostat, digital thermostat
  • Description
  • User Manual
  • Brochure

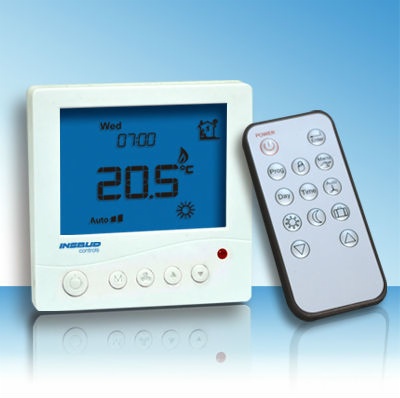

Remote control thermostat

> equipped with remote control facility;

> Large LCD display

> Can switch up to 16 amps, (230v AC, 120v Ac available)

> 30 amps optional

> Can be either an air only / floor only / Air & Floor

> 7 day programmable (each day can be set different).

> 4 set points per day (2 comfort - 2 economy), or 4 independent setpoints per day

> Manual override and vacation mode

> Blue back light illumination

> Casing available in white, gold,silve,black color

> F / C temperature format can be selected

> 12/24 Hour clock system can be selected

> programmes and settings can be reserved after power break

> 2 year warranty



Specifications

* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)
