programmable thermostat for 2 zones heating system TR3100-2ZP TR3100-2ZP

Item Code:TR3100-2ZP Features:programmable thermostat for 2 heating zones
  • Description
  • User Manual
  • Brochure

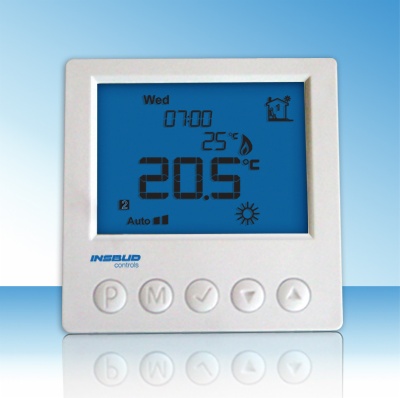

TR3100-2ZP programmable thermostat for 2 heating zones

2 X 3-meter floor sensor


Features

* Independent control for each zone
* Large LCD display
* Extra slim and compact control panel
* 7 day programmable (each day can be set different).
* 4 set points per day (2 comfort - 2 economy), or 4 independent setpoints per day
* Manual temporay override and vacation mode
* Frost protection function
* White backlight / Blue back light optional
* White,silver plastic finishes
* F / C temperature format can be selected
* 12/24 Hour clock format can be selected
* Programmes and settings can be reserved after power break
* Equipped with air and floor sensor
* Back light turning on/off time can be set
* Floor temperature limit
* Adjustable switching differential
* Firmware can be upgraded
* Customizing welcome


Specifications

* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 2 x switch relays, max 8Amp each
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)
