Insbud Controls Company Limited

1 built-in sensor
1 remote sensor

Features

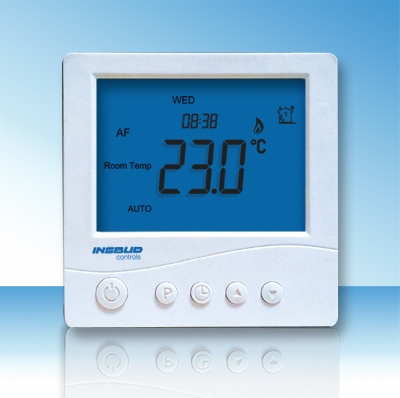

Digital room thermostat for under floor heating system.

> Large LCD display, European standard installation box
> Extra slim and compact control panel

> Can switch up to 16 amps(24vac, 230v AC, 120v Ac optional)

> Can be either an air only / floor only / Air & Floor

> 7 day programmable (each day can be set different).

> 4 independent setpoints per day

> Manual override and vacation mode
> Frost protection

> Blue back light illumination (white backlight optional)

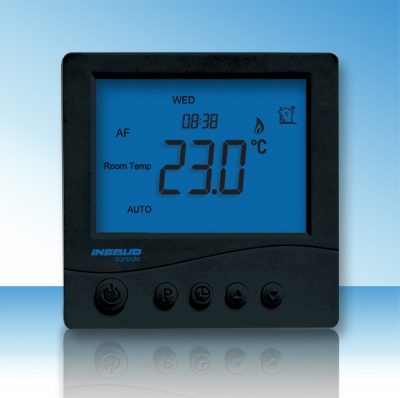

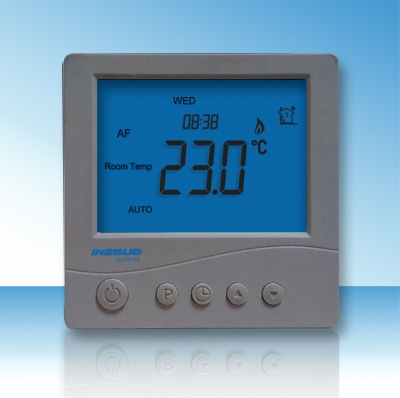

> Casing available in white, gold,silve,black,granite color

> F / C temperature format can be selected

> 12/24 Hour clock can be selected

> programmes and settings can be reserved after power break

> 2 year warranty

> equipped with air and floor sensor
> Back light turning on/off time can be set

> Floor temperature limit

> Switching differential setting

> Customizing welcome

Specifications

* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)
