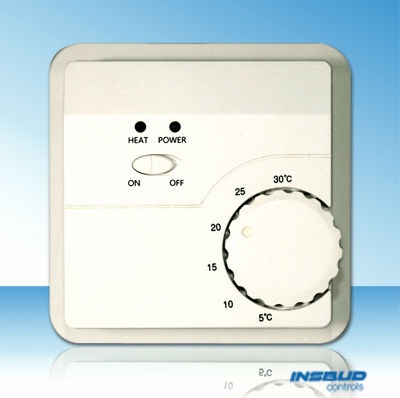

TR310A /F Underfloor Heating Room diital temperature control Thermostat
very simple to install and operate;
on/off switch;
heating led indicator;
power led indicator;
16Amp resistive load;
air sensing and floor sening models available.
3 meter long floor sensor, can be extended.
digital type thermostat
non-programmable
Technical Data
Supply voltage: 230vac
Ouput switching capability: 16A resistive
Temp range:5~35 deg C
Floor range: 5-40 deg C
Battery backup: 1x Cr1220 3V
Ambient temp:0~+40 deg C
On/off differential:0.5 deg C
Protective Housing: IP20
Housing material: PC+ABS
Sensor type: NTC(10K ohm)
Approvals: CE
Warranty: 2 years
Packing Details
1pc/inner box, 100pcs/carton
carton size:55*42*40cm


Wiring Diagram
