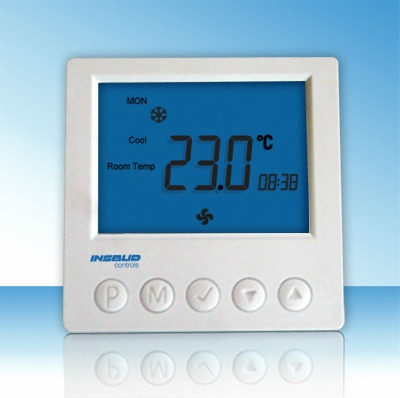

2 zone control thermostat for floor heating TR31002Z

Item Code:TR31002Z Features:
  • Description
  • User Manual
  • Brochure

non-programmable thermostat ,2 zone control ,Independent settings and control for each zone



Features

-Large LCD display for better readout

-Extra slim and compact control panel

-Detailed and clear instructions included for easy installation

-Features temperature accuracy down to 1 degree

-Symbol indicator when heating is on

-Battery backup to save settings during power failure

-White,silver plastic finishes optional

-Equipped with 2*3m floor sensor

-Customizing welcome



Specifications
* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 2 x switch relays, max 8Amp each
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)



Packing Details



> 1pc/inner box, 100pcs/carton

> Carton size: 55*40*42cm



Dimensions



TR3100
