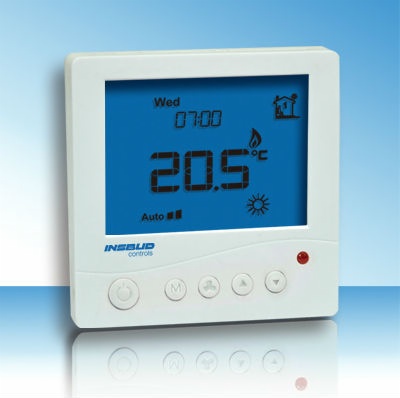

4 Zone control programmable thermostat for Hydronic Radiant Heatfor Hydronic Radiant Heat TR3100-4ZP

Item Code:TR3100-4ZP Features:
  • Description
  • User Manual
  • Brochure

4 zone Programmable digital thermostat

> Large LCD display

> Extra slim and compact control panel

> Can switch up to 8 amps each zone, (24vac, 230v AC, 120v Ac available)

> 7 day programmable (each day can be set different).

> 4 set points per day

> Manual override and vacation mode

> Frost protection

> Blue back light illumination

> Casing available in white, silver,black color

> F / C temperature format can be selected

> 12/24 Hour clock system can be selected

> programmes and settings can be reserved after power break

> 2 year warranty

> equipped with 4 remote sensors

> Back light turning on/off time can be set

> Switching differential setting

> Customizing welcome



Packing Details

> 1pc/inner box, 100 pcs/carton

> Carton size: 55*42*40cm





Technical Data

Supply voltage: 230vac

Ouput switching capability: 16A resistive

Temp range:5~35 deg C

Floor range: 5-40 deg C

Clock function: 4-event program

Battery backup: 1x Cr1220 3V

Ambient temp:0~+40 deg C

On/off differential:0.5 deg C

Protective Housing: IP20

Housing material: PC+ABS

Sensor type: NTC(10K ohm)

Approvals: CE

Warranty: 2 years



Dimension
