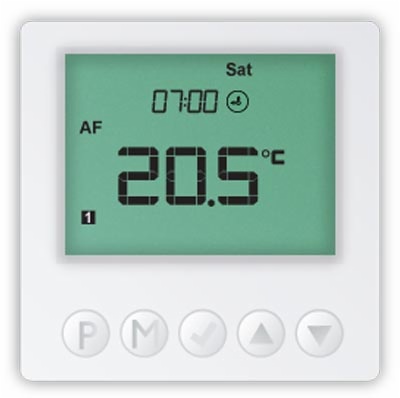

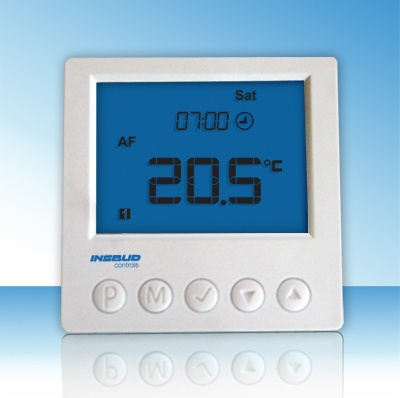

7 day programmable thermostat TX3000 TX3000

Item Code:TX3000 Features:7 day programmable thermostat
  • Description
  • User Manual
  • Brochure

1 built-in sensor
1 remote sensor
Can be used for electric floor heating / hydronic floor heating


Features


* Large LCD display
* Extra slim and compact control panel
* Can switch up to 16 amps
* Can be either an air only / floor only / Air & Floor
* 7 day programmable
* 4 set points per day
* vacation mode
* White / Blue /Green back light optional
* White,silver plastic finishes optional
* Equipped with air and floor sensor
* Floor temperature limit
* Adjustable switching differential
* Temperature calibrate option
* Customizing welcome


Specifications

* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1),max 3500watts
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions: 86mm x 86mm x13mm
* Display Size: 65 x 48mm.
