Temperature Difference Controller

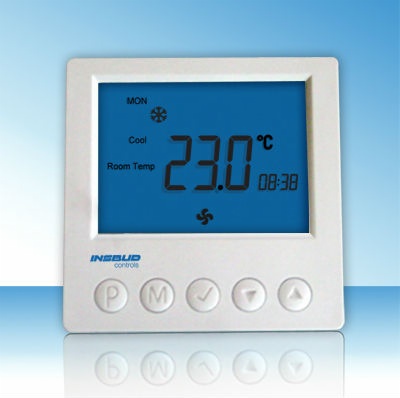

TR3100WOC Wood Oven Controller
2 X PT1000 inputs 1 X Silicon output (proportional pump control) 1 X Relay output
Features

• Blue back light illumination

• 2 x PT1000 inputs, 1 water pump output(silicon output) 1 relay output (for external function)

• large LCD with slim casing design

• T1_on adjustable ,50°C by default

• T1_off adjustable, 45°C by default

• T1_max adjustable, 75°C by default

• T2_on adjustable,60°C by default

• Limitation of storage tank temperature

• Manual / Auto mode

• Frost protection function

• Real time clock, time display and day display

• Settings can be reserved after power break

Specifications

• Power supply: 230VAC (120VAC optional)

 • Inputs: 2 x PT1000 temperature sensors

 • Output: 1 proportional pump control ,1 relay output

• Ambient temperature: 0 °C ~ +45 °C

• Operating RH: 0~95% (non condensing).

• Dimensions: 86mm x 86mm x13mm

• Display Size: 65 x 48mm.

 • Backlight life: 5,000 hours.

• Battery type: CR 1220 (Backs up clock only)

• Battery life: > 5years (10 years Maximum)

Packing Details

• carton size: 55*42*40cm

• case pack: 100pcs/carton
