LCD Display Digital Room Thermostat For Fan Coil Unit With Good Quality

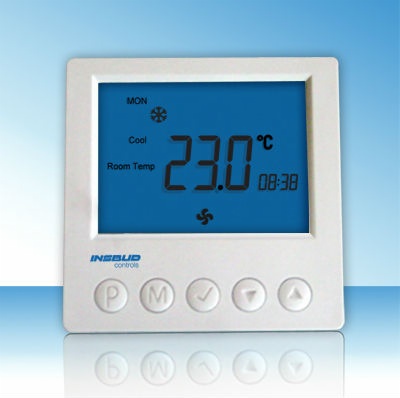

TR3100AC4P Room Thermostat for 4 pipe fan coil units

The TR3100AC series thermostat is a stand-alone microprocessor based thermostat with LCD display .

The thermostats are designed to control room temperature by way of on/off controlling the fan coil units(with or without motorized valves), air damper or electric heaters in heating, cooling and ventilation applications.

Features

• Large size LCD display for better readou

• Microprocessor based

• Reliable separate power unit

• Clear back light illumination

• Time display and week day display

• Adjustable High/medium/low/Auto fan speed

• Heat / Cool selection

• Customizing available

• 2 years warranty

Specification
Power Consumption: < 2W

Set-Point Range: 5~35 C

Accuracy: +1 C

Max. Load: 400W

Power Supply: 220V AC + 15% 50/60Hz

Housing: Anti-flammable ABS

Dimension: 86X86X13 MM

Agency Approval: CE compliant

Wiring Diagram

 Dimension

Packing Details

 > 1pc/inner box, 100pcs/carton

 >  Carton size: 55*40*42cm
