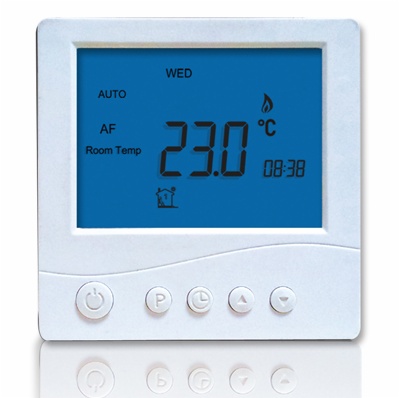

Digital floor heating thermostat TR3504

Item Code:TR3504 Features:Electric heating thermostat radiant floor heat programmable thermostat floor heating thermostat, digital thermostat
  • Description
  • User Manual
  • Brochure

Electric heating thermostat

TR3504 for under floor heating system.

> Large LCD display
> Extra slim and compact control panel

> Can switch up to 16 amps,(24vac, 230v AC, 120v Ac available)

> Can be either an air only / floor only / Air & Floor

> 7 day programmable (each day can be set different).

> 4 set points per day

> Temporary override and vacation mode
> Frost protection

> Blue back light illumination (optional)

> Casing available in white,silver,black color

> F / C temperature format optional

> 12/24 Hour clock format optional

> programmes and settings can be reserved after power break

> 2 year warranty

> equipped with air and floor sensor
> Back light turning on/off time can be set

> Floor temperature limit

> Switching differential setting

> Customizing welcome

Packing Details



> 1pc/inner box, 100pcs/carton

> Inner box size: 11x10x6cm

> Carton size: 68x28x43cm
