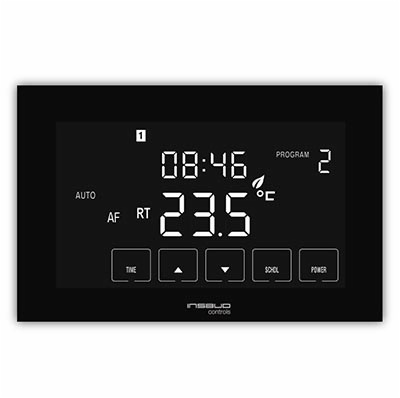

STH132HB2Z Dual function, thermostat and timer

Programming
Choice of 7 day, 5/2 day programmable or
non-programmable (installer selectable);
4 time and 4 temperature settings every day;
pre-programmed or personalized schedule;
Energy saving up to 33%

Display
Large, 95x55mm touchscreen display;

European standard installation box;
Blue, lighted display for easier low-light viewing;
Larger, easy-to-read character size;
Extra-large touch keys for easy operation;
Clean, uncluttered touchscreen display provides
Easier navigation.

Comfort & Convenience
Intuitive menu-driven set-up, programming and operation,
with audio prompt to confirm touchscreen entries;
Permanent program retention during power loss;
Setpoint temperature limited range capable;
Enhanced touchscreen security prevents tampering.
Room temperature display can be recalibrated up to +/- 4°C;
Can switch upto 16 amps (230v)
Temperature display resolution: 0.5 °C;


A / AF/ F models all in one
Combination of 3 models;
A - Air only, with built-in sensor;
F - Floor only,controls floor temperature;
AF - Controls air temperature with ability to limit the
floor temperature
Each thermostat is equipped with built-in sensor
and a 3 meter floor sensor. The floor sensor can be extended.

Specification
* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x  relay max 16A; 1 x relay max 2A

* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions:121mm x 80mm x18mm
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)
