Touch screen thermostat for floor heating TR8100V TR8100V

Item Code:TR8100V Features:4.3 inch full touch screen thermostat
  • Description
  • User Manual
  • Brochure

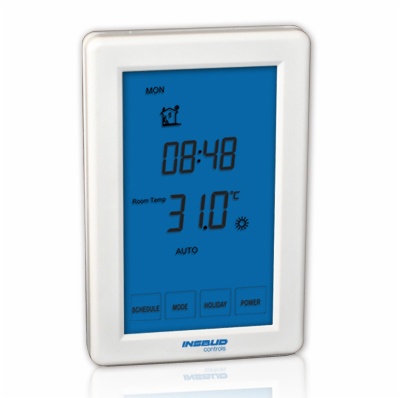

Touch screen thermostat for floor heating

TR8100V

Programming
Choice of 7 day, 5/2 day programmable or
non-programmable (installer selectable);
4 time and 4 temperature settings per day;
pre-programmed or personalized schedule;
Energy savings up to 33%

Display
Large, 4.3-inch touchscreen display;
Blue, lighted display for easier low-light viewing;
Larger, easy-to-read character size;
Extra-large touch keys for easy operation;
Clean, uncluttered touchscreen display provides
easier navigation.

Comfort & Convenience
Intuitive menu-driven set-up, programming and operation,
with audio prompt to confirm touchscreen entries;
Permanent program retention during power loss;
Setpoint temperature “limited range” capable;
Enhanced touchscreen security prevents tampering.
Room temperature display can be recalibrated up to +/- 4°C;
Can switch upto 16 amps (230v)
Temperature display resolution: 0.1 C;
Temporary temperature override;
C / F temperature format selection by buttons;
Air / floor temperature calibration separately
Available in white and silver plastic finishes

A / AF/ F models all in one
Combination of 3 models;
A - Air only, with built-in sensor;
F - Floor only,controls floor temperature;
AF - Controls air temperature with ability to limit the
floor temperature
Each thermostat is equipped with built-in sensor
and a 3 meter floor sensor. The floor sensor can be extended.

Useful settings
Vacation mode(frost protection mode)
24hr/12hr clock format selection
Switching differential setting
Floor temperature limit
