Touch screen thermostat
TR8200 is specially designed to control your heating with an
accurate temperature regulation and provide energy savings.
Programming
Choice of 7 day, 5/2 day programmable or
non-programmable (installer selectable);
4 time and 4 temperature settings per day;
pre-programmed or personalized schedule;
Energy savings up to 33%
Display
Large, 4.3 inch touchscreen display;
Blue, lighted display for easier low-light viewing;
Larger, easy-to-read character size;
Extra-large touch keys for easy operation;
Clean, uncluttered touchscreen display provides
easier navigation.
Comfort & Convenience
Intuitive menu-driven set-up, programming and operation,
with audio prompt to confirm touchscreen entries;
Permanent program retention during power loss;
Setpoint temperature “limited range” capable;
Enhanced touchscreen security prevents tampering.
Room temperature display can be recalibrated up to +/- 5°C;
Can switch upto 16 amps (230v)
Temperature display resolution: 0.5°C;
Temporary temperature override;
C / F temperature format selection ;
Air / floor temperature calibration separately

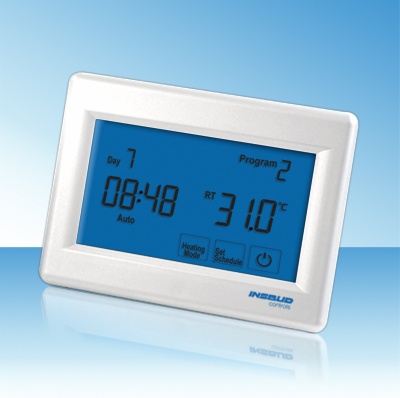

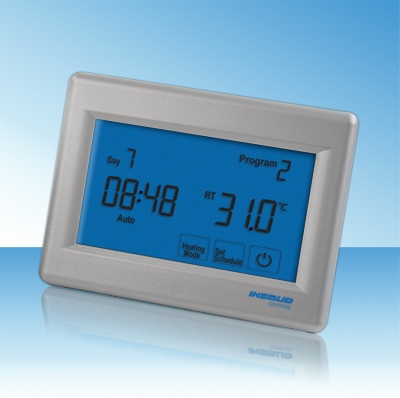

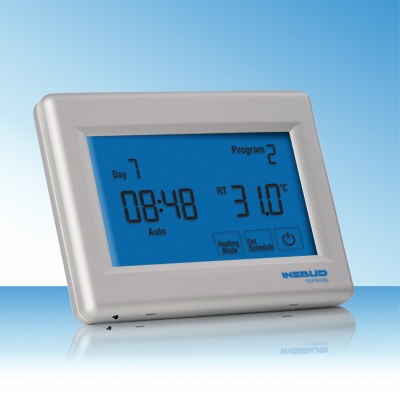

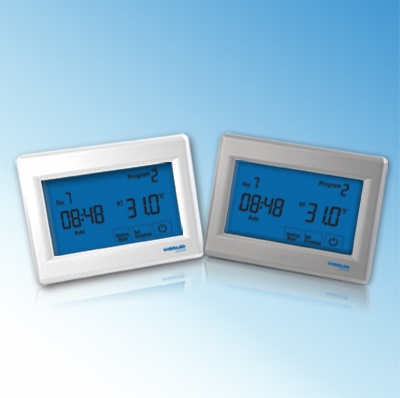

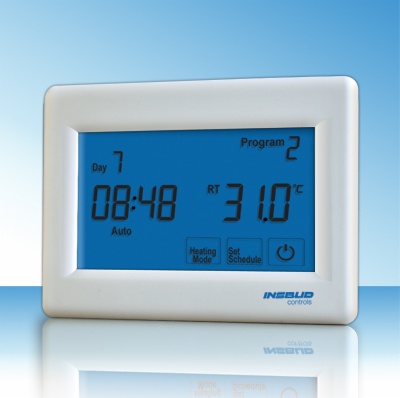

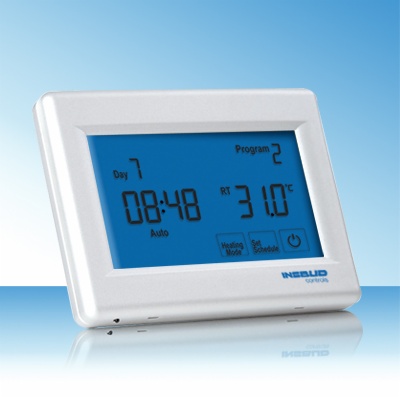

Available in white, black,granite and silver plastic finishes
A / AF/ F models all in one
Combination of 3 models;
A - Air only, with built-in sensor;
F - Floor only,controls floor temperature;
AF - Controls air temperature with ability to limit the
floor temperature
Each thermostat is equipped with built-in sensor
and a 3 meter floor sensor. The floor sensor can be extended.
Default Programmes
Programme |
Start Time |
Setpoint |
1 |
07:00 |
22 °C |
2 |
09:30 |
16 °C |
3 |
16:30 |
22 °C |
4 |
22:00 |
16 °C |
|
|
|
|
|
|
Specifications
* Power supply: 230VAC (120VAC optional)
* Inputs: 2 x NTC10K temperature sensors
* Output: 1 x switch relay(R1)
* Switching capacity: max 16A
* Ambient temperature: -5 °C ~ +45 °C
* Operating RH: 0~95% (non condensing)
* Accuracy: +/- 1 °C for +20 °C
* Dimensions W x H x D (mm):127 x 96 x19
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)
* Protection degree: IP30
Useful settings
Vacation mode(frost protection mode)
24hr/12hr clock format selection
Switching differential setting
Floor temperature limit
Hidden menu(press and hold"OFF"for 5 seconds in standby mode)
