Room Thermostat TR3100AC4P TR3100AC4P

Item Code:TR3100AC4P Features:Non programmable room thermostat for 4 pipe fan coil units
  • Description
  • User Manual
  • Brochure

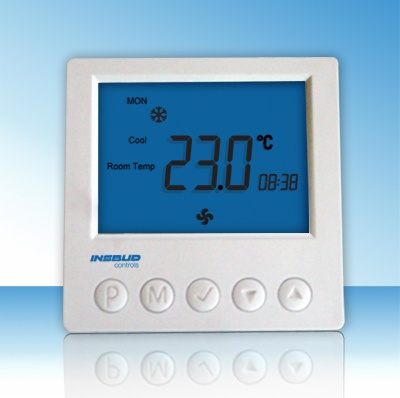

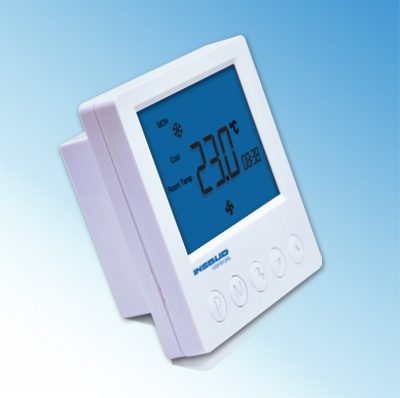

TR3100AC4P Room Thermostat for 4 pipe fan coil units


The TR3100AC series thermostat is a
stand-alone microprocessor
based thermostat with LCD display .
The thermostats are designed
to control room temperature by way of
on/off controlling the fan coil
units(with or without motorized valves),
air damper orelectric heatersin heating,
cooling and ventilation applications.


Features
Large LCD, Luxurious appearance
Microprocessor based
Reliable separate power unit
Clear back light illumination
Time display and week day display
Adjustable High/medium/low/Auto fan speed
Heat / Cool selection
Customizing available

Specification
Power Consumption: < 2W
Set-Point Range: 5~35 C
Max. Load: 400W
Power Supply: 220V AC + 15% 50/60Hz
Accuracy: +1 C
Housing: Anti-flammable ABS
Dimension: 86X86X13 MM
Agency Approval: CE compliant
