Insbud Controls Company Limited

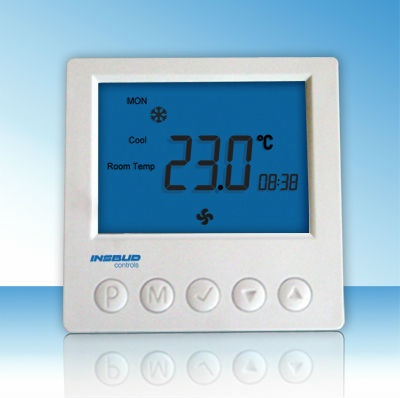

fan coil unit thermostat

• Heating, Cooling modes
• large LCD display with back light illumination
• Slim design
• Fan speed: Auto, High, Medium, Low
• Heating Output
• Cooling Output
• Frost protection
• Easily increase or decrease the required temperature
• Temperature range 05°C - 35°C
• Remote control optional
• Power Supply: 230v or 110v, or 24v
• Communication Protocol: MODBUS RTU over RS485 (optional)

Models and Application
TR3100AC-B: control fan coil only, It directly control the fan speed and running/stopping
of fan coil uni ts.
TR3100AC-DA : control fan coil and valve. When room temperature reaches the set-point,
it will close the valve with the fan coil still running.
TR3100AC-DB : control fan coil and valve. When room temperature reaches the set-point,
it will close the valve and turn off the fan coil unit.
TR3100AC-F: control motorized air damper, when temperature reaches the set-point, the
air damper will be closed.

Specifications
Power Consumption: < 2W
Set point Range: 5~35 degree C
Accuracy: +/-1 degree C
Max. Load: 400W
Power Supply: 220V AC + 15% 50/60Hz
Housing: Anti-flammable ABS
Dimension: 86X86X13 MM
Agency Approval: CE compliant
