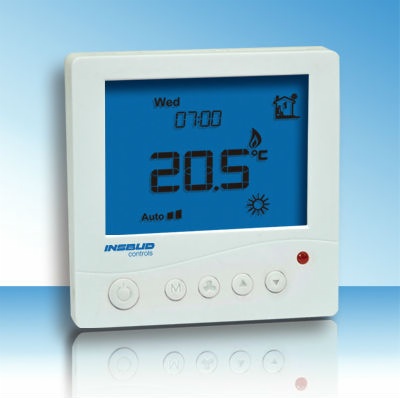

Programmable 3-speed Fan Controller TR3100FAN

Item Code:TR3100FAN Features:
  • Description
  • User Manual
  • Brochure

TR3100FAN Programmable 3-speed Fan Controller

Features

• To control 3-speed fan only;
• White back light;
• 4 programmes per day;
• 7 days programmable( each day can be different);
• Fan fail alert;
• Auot / manual mode;
• Override function;
• Key lock function;

Specifications
• Power supply: 230VAC (12VDC optional)
• Inputs: 1 x NTC built-in temperature sensor
• Output: 1 x 3-speed fan, max 200watts
• Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
• Operating RH: 0~95% (non condensing).
• Dimensions: 86mm x 86mm x13mm
• Display Size: 65 x 48mm.
• Backlight life: 5,000 hours.
• Battery type: CR 1220 (Backs up clock only)
• Battery life: > 5years (10 years Maximum)
