FEATURES

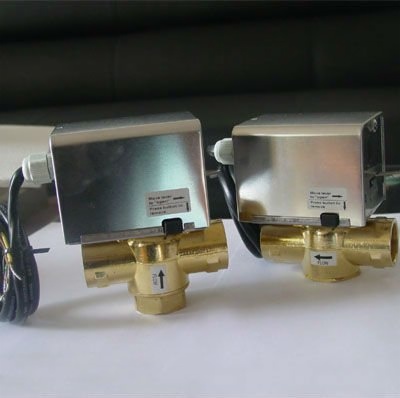

Pop-top actuators can be removed at the push of a button
in 22mm, 28mm sizes, 2-way and 3-way;
100% tight shut off;
Manual lever ;
Normally closed, if the mains power is disconnected, the valve will automatically spring return to the closed position;

Voltage free output signal


TECHNICAL DATA
Standard motor voltage: 230v 50Hz 7 watts; (120v,24v available)
Operating time: opening 10~15 secs, spring return 4~5 secs.
Operating pressure: 300 psi / 2.0 Mpa
Norminal pressure: 233 psi / 1.6 Mpa
Water temperature: 0 ~90 deg C

Ambient temperature: 0~50 deg C
Valve body: Brass forging
Connections: 22mm compression;28mm compression;
Lead length: 1 Metre
