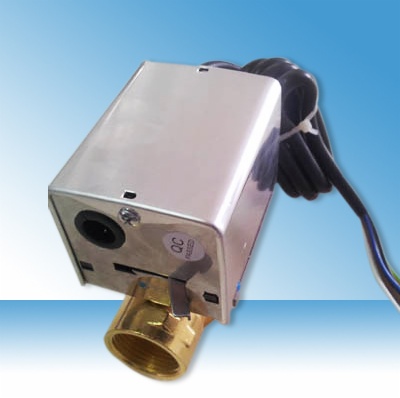

22mm/28mm Motorised zone valve IB7322

Item Code:IB7322 Features:brass valve equipped with on/off electric actuator.
  • Description
  • User Manual
  • Brochure

FEATURES
Pop-top actuators can be removed at the push of a button
in 22mm, 28mm sizes

2 port an 3 port available
100% tight shut off
Manual lever
Spring return
Replaceable actuators



TECHNICAL DATA
Standard motor voltage: 230v 50HZ  7 watts;  (120v,24v available)
Operating time: opening 10~15 secs, spring return 4~5 secs.
Operating pressure: 300 psi / 2.0 Mpa
Norminal pressure: 233 psi / 1.6 Mpa
Water temperature: 0 ~90 deg C

Ambient temperature: 0~50 deg C
Valve body: Brass forging
Connections: 22mm compression;28mm compression;
Lead length: 1 Metre, 5 core

Pipe fitting sizes: 22mm&28mm compressionfitting, 3/4"&1" BSP

3 year warranty

Manual lever for filling up and draining down

Spring return action
