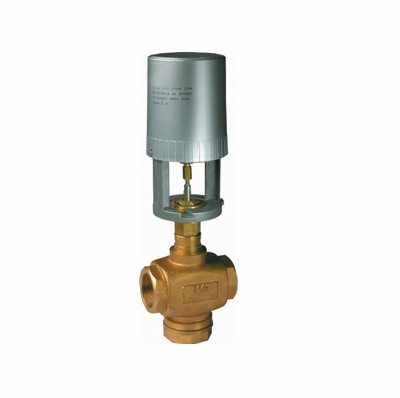

2-way and 3-way valves intended for use in heating and cooling systems.
Suitable for hot and chilled water. The 3-way valve can be used as a mixing
valve or diverting valve.
• Sizes from DN15 up to DN65
• Female threaded
• Cast copper body(stainless steel body optional)
• Pressure rating PN16
• Fluid temperature -10 to 95°C
• Equal percentage flow characteristics
• Actuator power supply: 24Vac
• Control signal: 3 point or 0~10v(4~20mA)
Model
|
Port
|
Size
|
Kvs
|
ActuatorForce(N)
|
VB-3200-15
|
2-way
|
G 1/2” / 15mm
|
4
|
500/1000
|
VB-3200-20
|
G 3/4” / 20mm
|
6.3
|
500/1000
|
VB-3200-25
|
G1″/ 25mm
|
10
|
500/1000
|
VB-3200-32
|
G11/4″/ 32mm
|
16
|
1000
|
VB-3200-40
|
G11/2″/ 40mm
|
25
|
1000
|
VB-3200-50
|
G2″/ 50mm
|
40
|
1000
|
VB-3200-65
|
G21/2″/ 65mm
|
63
|
1800
|
VB-3300-15
|
3-way
|
G 1/2” / 15mm
|
4
|
500/1000
|
VB-3300-20
|
G 3/4” / 20mm
|
6.3
|
500/1000
|
VB-3300-25
|
G1″/ 25mm
|
10
|
500/1000
|
VB-3300-32
|
G11/4″/ 32mm
|
16
|
1000
|
VB-3300-40
|
G11/2″/ 40mm
|
25
|
1000
|
VB-3300-50
|
G2″/ 50mm
|
40
|
1000
|
VB-3300-65
|
G21/2″/ 65mm
|
63
|
1800
|
