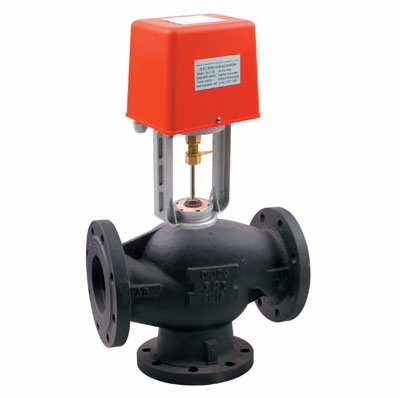

A series of 2-way and 3-way valves intended for use in heating and cooling systems.
Suitable for hot and chilled water.
• Sizes from DN65 up to DN200
• Female threaded
• Cast iron body(cast steel body optional)
• Pressure rating PN16
• Fluid temperature -10 to 95°C
• Equal percentage flow characteristics
• Actuator power supply: 24Vac
• Control signal: 3 point or 0~10v(4~20mA)
Model
|
Port
|
Size
|
Kvs
|
ActuatorForce(N)
|
VB-7200-65
|
2-way
|
G21/2″/ 65mm
|
63
|
3000
|
VB-7200-80
|
G 3” / 80mm
|
100
|
3000
|
VB-7200-100
|
G4″/ 100mm
|
160
|
3000
|
VB-7200-125
|
G5″/ 125mm
|
250
|
4000
|
VB-7200-150
|
G6″/ 150mm
|
400
|
4000
|
VB-7200-200
|
G8″/ 200mm
|
600
|
4000
|
VB-7300-65
|
3-way
|
G21/2″/ 65mm
|
63
|
3000
|
VB-7300-80
|
G 3” / 80mm
|
100
|
3000
|
VB-7300-100
|
G4″/ 100mm
|
160
|
3000
|
VB-7300-125
|
G5″/ 125mm
|
250
|
4000
|
VB-7300-150
|
G6″/ 150mm
|
400
|
4000
|
VB-7300-200
|
G8″/ 200mm
|
600
|
4000
|
