Home
>
Valves and Dampers
>
Electrothermal actuator

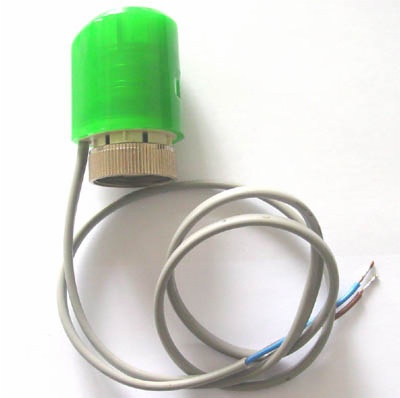

Electrothermal actuator Electrothermal actuator

Enlarge

Item Code:Electrothermal actuator Features:

Description
User Manual
Brochure

Voltage: AC230V (110V,24V AC optional)
Power consumption: 2W
Force: 110N
Stroke: 3mm
Running time: Open-3mins, close-5mins
Valve interface: Cap nut M30*1.5mm
Ambient temperature: -560
Cable Length: 900mm
Housing material: Self-extinguishing PC
(PA66 as internal components)
Protective housing: IP54
Mounting position: Vertical position to 90°declined
