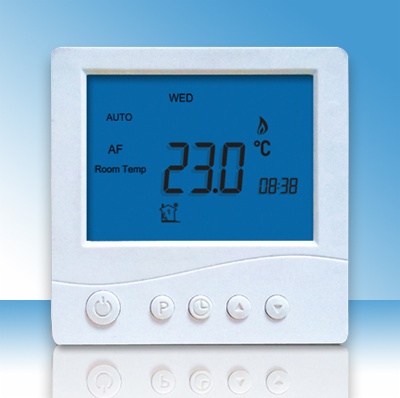

Digital floor heating thermostat TR3504

Item Code:TR3504 Features:
  • Description
  • User Manual
  • Brochure

Electric heating thermostat

TR3504 for under floor heating system.

> Large LCD display

> Extra slim and compact control panel

> Can switch up to 16 amps,(24vac, 230v AC, 120v Ac available)

> Can be either an air only / floor only / Air & Floor

> 7 day programmable (each day can be set different).

> 4 set points per day

> Temporary override and vacation mode

> Frost protection

> Blue back light illumination (optional)

> Casing available in white,silver,black color

> F / C temperature format optional

> 12/24 Hour clock format optional

> programmes and settings can be reserved after power break

> 2 year warranty

> equipped with air and floor sensor

> Back light turning on/off time can be set

> Floor temperature limit

> Switching differential setting

> Customizing welcome



ordering code







Technical Data



 Supply voltage: 230vac

Ouput switching capability: 16A resistive

Temp range:5~35 deg C

Floor range: 5-40 deg C

Clock function: 4-event program

Battery backup: 1x Cr1220 3V

Ambient temp:0~+40 deg C

On/off differential:0.5 deg C

Protective Housing: IP20

Housing material: PC+ABS

Sensor type: NTC(10K ohm)

Approvals: CE

Warranty: 2 years





Packing Details



> 1pc/inner box, 100pcs/carton

> Carton size: 55*42*40cm




554240

 Dimensions



tr3500 dimensions

Wiring Diagram
