touch screen 0-10v thermostat for fan coil unit TR8200DC

Item Code:TR8200DC Features:
  • Description
  • User Manual
  • Brochure

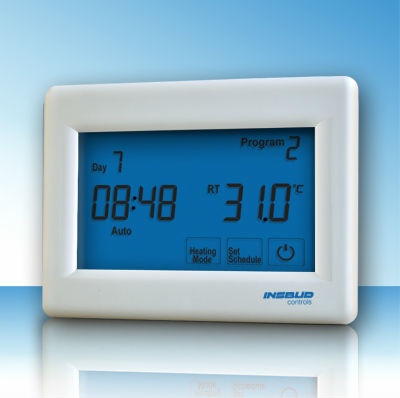

TR8200DC touch screen thermostat with 0-10v dc output

For 2 pipe fan coil system

Dry contacts outputs for heat /cool (or digital outputs)



Manual fan speed: 0, 20%,40%,60%,80%,100% adjusted manually

Auto fan speed: 20%, 60%, 100% according to temperature difference



Programming
Choice of 7 day, 5/2 day programmable;

Display
Large, 4.3-inch touchscreen display;
Blue, lighted display for easier low-light viewing;
Larger, easy-to-read character size;
Extra-large touch keys for easy operation;
Clean, uncluttered touchscreen display provides
easier navigation.







Comfort & Convenience
Intuitive menu-driven set-up, programming and operation,
with audio prompt to confirm touchscreen entries;
Permanent program retention during power loss;
Enhanced touchscreen security prevents tampering.
Room temperature display can be recalibrated up to +/- 5°C;
Temperature display resolution: 0.5°C;

Temporary temperature override;
C / F temperature format selection;

24/12 Hour clock selection;
Available in white and silver plastic finishes.


Specifications
* Power supply: 24VAC
* Inputs: 1x NTC10K built-in temperature sensor
* Outputs: 2 x 2-wire valve outputs, dry contacts; 1x 0-10vdc output for fan speed control
* Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
* Operating RH: 0~95% (non condensing).
* Dimensions:127mm x 95mm x22.5mm
* Backlight life: 5,000 hours.
* Battery type: CR 1220 (Backs up clock only)
* Battery life: > 5years (10 years Maximum)



Wiring Diagram



TR8200DC Wiring



Packing details

* 1pc/inner box, 50pcs/caton

* Carton size: 55*42*40cm

TR8200

packing
