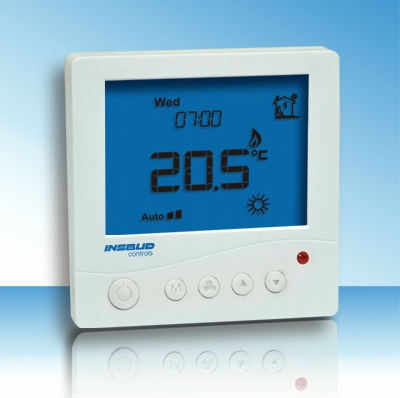

Insbud Controls Company Limited

2 X PT1000 inputs
1 X Silicon output
(proportional pump control)
1 X Relay output

Features
• Blue back light illumination
• 2 x PT1000 inputs,
1 water pump output(silicon output)
1 relay output (for external function)
• large LCD with slim casing design
• T1_on adjustable ,50°C by default
• T1_off adjustable, 45°C by default
• T1_max adjustable, 75°C by default
• T2_on adjustable,60°C by default
• Limitation of storage tank temperature
• Manual / Auto mode
• Frost protection function
• Real time clock, time display and day display
• Settings can be reserved after power break


Specifications
• Power supply: 230VAC (120VAC optional)
• Inputs: 2 x PT1000 temperature sensors
• Output: 1 proportional pump control ,1 relay output
• Ambient temperature: 0 °C ~ +45 °C
• Operating RH: 0~95% (non condensing).
• Dimensions: 86mm x 86mm x13mm
• Display Size: 65 x 48mm.
• Backlight life: 5,000 hours.
• Battery type: CR 1220 (Backs up clock only)
• Battery life: > 5years (10 years Maximum)

Application
