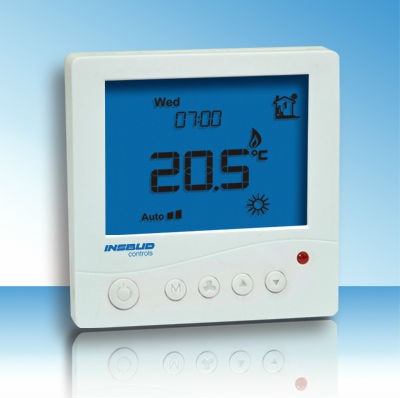

Insbud Controls Company Limited

2 X PT1000 inputs
1 X triac output for pump speed control
1 X switch output relay

Features
• Graphical LCD display with blue back light
• Animated graphic of the systems status
• 2 x PT1000 inputs,
• 1 triac output for pump speed control
• 1 relay output (for external function)
• large LCD with slim casing design
• T1_on adjustable ,20°C by default
• T1_max adjustable, 120°C by default
• T1-T2_max adjustable, 15°C by default
• T1-T2_OFF adjustable,8°C by default
• Limitation of storage tank temperature
• Manual / Auto mode
• Frost protection function
• Holiday function(protect from overheaing)
• Minimum pump speed setting
• Real time clock, time display and day display
• Settings can be reserved after power break


Specifications
• Power supply: 230VAC (120VAC optional)
• Inputs: 2 x PT1000 temperature sensors
• Output: 1 triac,1 relay output
• Ambient temperature: 0 °C ~ +45 °C
• Operating RH: 0~95% (non condensing).
• Dimensions: 86mm x 86mm x13mm
• Display Size: 65 x 48mm.
• Backlight life: 5,000 hours.
• Battery type: CR 1220 (Backs up clock only)
• Battery life: > 5years (10 years Maximum)
