Trace heating controller;Surface sensing thermostat TR311

Item Code:TR311 Features:This thermostat provides temperature control range of 0-40 centigrade and 0-120 centigrade optional. power supply can be 230v ac or 120v ac optional. It has a plastic knob inside so that user can adjust the set temperature. It has a green led and a red led light.
  • Description
  • User Manual
  • Brochure

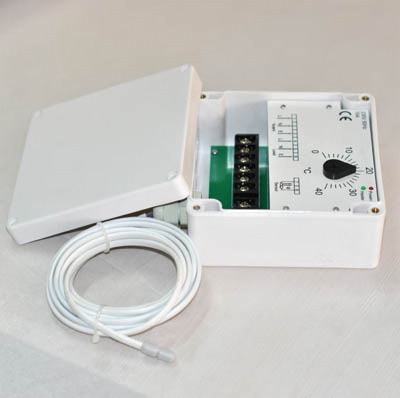

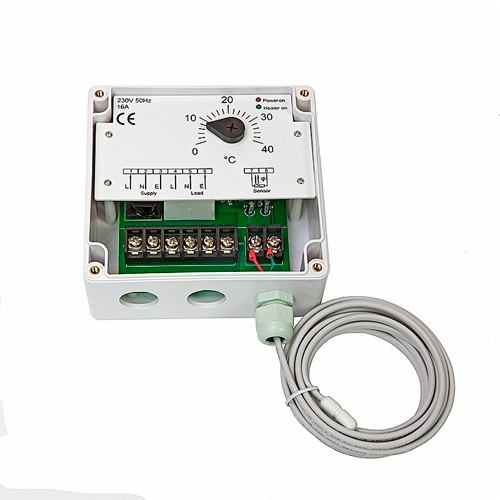

The TR311 series of thermostats provide temperature
control in safe area. The temperature set
point can be checked through a trasparent lid(optional). LED´s are providing an indication
when cables are energized (Heating ON) or when the temperature sensor is
defect (sensor break or sensor shortcircuit).
The temperature sensor has a
length of 3 meter and can be shortened
for ambient sensing operating.  The thermostat is available in
2 temperature ranges. 0-40 centigrade and 0-120 centigrade;

  • IP65-rated for durability
  • Temperature range: 0 to 40°C, 0-120°C
  • 16Amp capacity
  •  excellent choice for precise and reliable control of trace heating systems

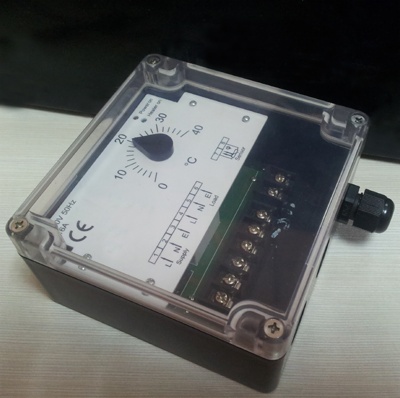

  • Also available in transparent lid.

Other Products

Product Name:
Trace heating thermostat
Model:
TR311
Description:
Product Name:
Dual trace heating controller
Model:
DUAL TRACE
Description:
The dual safe heating controller monitors and provides power to one or two heating circuits.Two separate switching circuits ensure frost protection even in the event one heater circuit fails,however,the dual safe heating controller is suitable for use with a single heating circuit.The control unit constantly monitors both circuits for a fault condition.When a fault occurs on a heating circuit the controller automatically switches to the other heater circuit. An indicator light activates on the controller displaying which circuit has a fault and the fault output changes state to remotely trigger a BMS/SCADA system if required.
more
