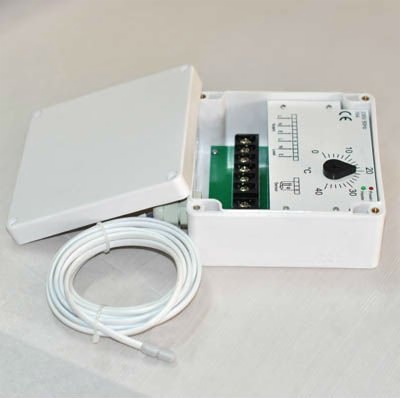

Trace heating thermostat TR311

Item Code:TR311 Features:
  • Description
  • User Manual
  • Brochure

Trace heating thermostat

Line sensing control thermostat. Adjustable temperature range between 0 Deg C to +40 Deg C. Ideal for temperature maintenance on pipelines for fatty waste water.





Technical Specification Value
Max. switching current 16amp 250VAC





General

 Area of use: Ordinary area, outdoors

 Supply voltage: 230 V +10% –15% 50/60 Hz

Max. switching current:16 A, 250 VAC

Conductor size 2.5 mm2

Adjustable temperature range: 0°C to +40°C (0°C to +120°C optional)



Housing

Temperature setting: inside

Exposure temperature :–20°C to +50°C

Ingress protection: IP65 according to EN 60529

Entries 2 x M20  , 1 x M16 for the sensor

Material: ABS







HOT SALE PRODUCT:

 Programmable Touch Screen Floor Heating Thermostat





 High efficiency Underfloor heating thermostat





Other Products

Product Name:
Dual trace heating controller
Model:
DUAL TRACE
Description:
The dual safe heating controller monitors and provides power to one or two heating circuits.Two separate switching circuits ensure frost protection even in the event one heater circuit fails,however,the dual safe heating controller is suitable for use with a single heating circuit.The control unit constantly monitors both circuits for a fault condition.When a fault occurs on a heating circuit the controller automatically switches to the other heater circuit. An indicator light activates on the controller displaying which circuit has a fault and the fault output changes state to remotely trigger a BMS/SCADA system if required.
Product Name:
Trace heating controller;Surface sensing thermostat
Model:
TR311
Description:
This thermostat provides temperature control range of 0-40 centigrade and 0-120 centigrade optional. power supply can be 230v ac or 120v ac optional. It has a plastic knob inside so that user can adjust the set temperature. It has a green led and a red led light.
