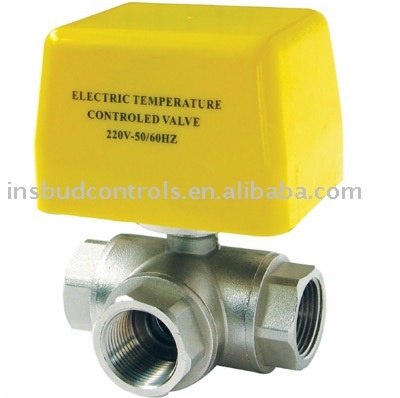

motorzied ball valve 2-way /3-way

Item Code:2-way /3-way Features:
  • Description
  • User Manual
  • Brochure
Valve type: 2-way /3-way ball valve

Pressure class: PN16

Supply Voltage: 230VAC

Connection: inner thread

Ambient Temperature :< 65oC

Fluid temperature:0oC~130oC
Relative Humidity:max 95%

Valve body: Brass

Protection Class:IP55


Size: 15mm,20mm,25mm,32mm


The valve has a 230V permanent live and neutral and a signal wire operated by an input
signal which is also 230V. As long as the signal is on, the valve remains open. When the
signal is off, the valve is closed.

Other Products

Product Name:
motorized vavle
Model:
motorized vavle
Description:
Product Name:
zone valve
Model:
2-way /3-way valve
Description:
Product Name:
motorized air damper
Model:
TRAD-02
Description:
Product Name:
motorized globe valve
Model:
VB-7200/7300
Description:
Product Name:
mixing valve
Model:
3-way and 4-way
Description:
Product Name:
Boiler Thermostat, Equipped with Temperature Adjustment Knob
Model:
TR004
Description:
Used to control the temperature of pipe or boiler Combined to pipe with tension strap Equipped with temperature adjustment knob Temperature adjustment range: 0 to 90°C Switching difference: 5°C Contact ranting: 16A, 250V
Product Name:
motorized valve
Model:
valve
Description:
