Material : brass

Pipe thread :1/2", 5/8", 3/4", sweat type


Valve type: normally closed 2-way /diverting 3-way

Supply Voltage: 230VAC; 120VAC; 24VAC

Operating pressure: 300 psi / 2.0 Mpa

Norminal pressure: 233 psi /1.6 Mpa

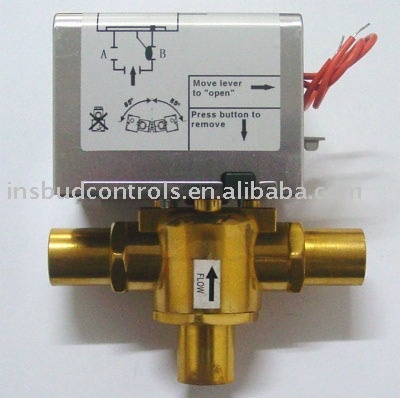

These valves are compact units consisting of small Electric Actuator and 2 / 3
Way Valve for controlling the flow of water or any liquid that is not injurious to
Brass. These valves are designed for use in Fan Coil Units or any other system
requiring quite and compact water lines.


Design Features


The valves are supplied complete with actuator that can easily be installed.
The housing and the cover are made of metal.
A flap made of special rubber is used as the element to provide absolutely tight
shut-off. Two O-rings are used to seal the spindle.
The motor opens the valve electrically and closes it by means of springs.
Faulty actuators can be replaced without removing the valve form the pipe work.
Auto/manual lever which allows manual operation at power failure.



The valve installation must be done by a trained experienced technician only.
The rating given on the valve should be checked and confirmed suitable for
Iine use before installation . Install the valve in on area with adequate
Clearance , so that the manual opening lever on the body can be moved freely.
It can be mounted in any position on vertical pipe line . If it is mounted
Horizontally . The power head must be even with or above the center line of
The piping . Always ensure that enough space is provided above the power
Head to remove the cover for servicing.
NOTE :- THIS IS A SIMPLE DIVERTING VALVE AND CAN BE USED IN
ANY WHERE THERE IS A REQUIREMENT FOR DIVERTING LIQUID , THIS
VALVE IS ONLY MEANT FOR USE IN LIQUID .
