Insbud Controls Company Limited

FEATURES

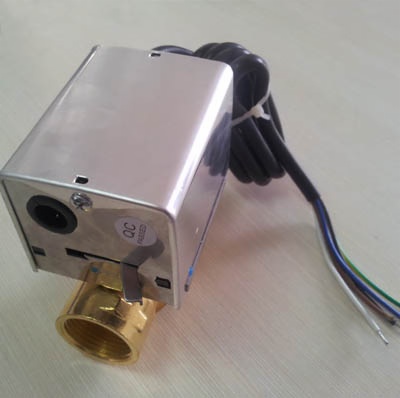

Pop-top actuators can be removed at the push of a button
in 15mm,20mm, 25mm sizes
100% tight shut off
Manual lever
Spring return
Replaceable actuators

Open / Close position signal output

TECHNICAL DATA
Standard motor voltage: 230v 50HZ  7 watts;  (120v,24v available)
Operating time: opening 10~15 secs, spring return 4~5 secs.
Operating pressure: 300 psi / 2.0 Mpa
Norminal pressure: 233 psi / 1.6 Mpa
Water temperature: 0 ~90 deg C

Ambient temperature: 0~50 deg C
Valve body: Brass forging
Lead length: 1 Metre
