programmable floor heating thermostat TB1

Item Code:TB1 Features:programmable thermostat for under floor heating system
  • Description
  • User Manual
  • Brochure

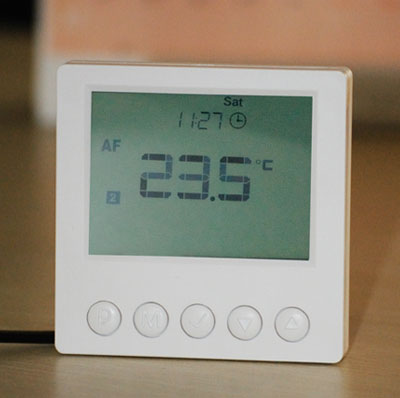

7 day programmable thermostat TB1

Can be used for electric floor heating / hydronic floor heating


Features

*     Large LCD display
*     Extra slim and compact control panel
*     Can switch up to 16 amps
*     Can be either an air only / floor only / Air & Floor
*     7 day programmable
*     4 set points per day
*     vacation mode
*     Black, white,silver glass plate optional
*     Equipped with air and floor sensor
*     Floor temperature limit
*     Adjustable switching differential
*     Temperature calibrate option
*     Customizing welcome

Specifications

*    Power supply: 230VAC (120VAC, 24VAC optional)
*    Inputs: 2 x NTC10K  temperature sensors
*    Output: 1 x switch relay(R1),max 3500watts
*    Ambient temperature: 0 °C [+32 °F] ~ +45 °C [+113 °F]
*    Operating RH: 0~95% (non condensing).
*    Dimensions: 86mm x 86mm x13mm
*    Display Size: 65 x 48mm.

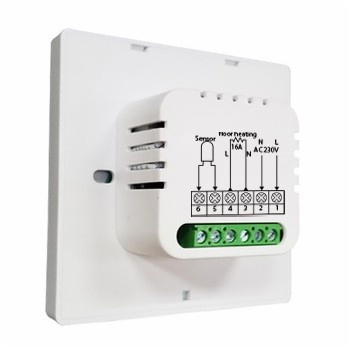

Wiring Diagram
