Floor heating thermostat TR220

Item Code:TR220 Features:Modern digital programmable thermostat with pre-connected on-off contacts for 230V AC operation, or 24VAC operation optional.
  • Description
  • User Manual
  • Brochure

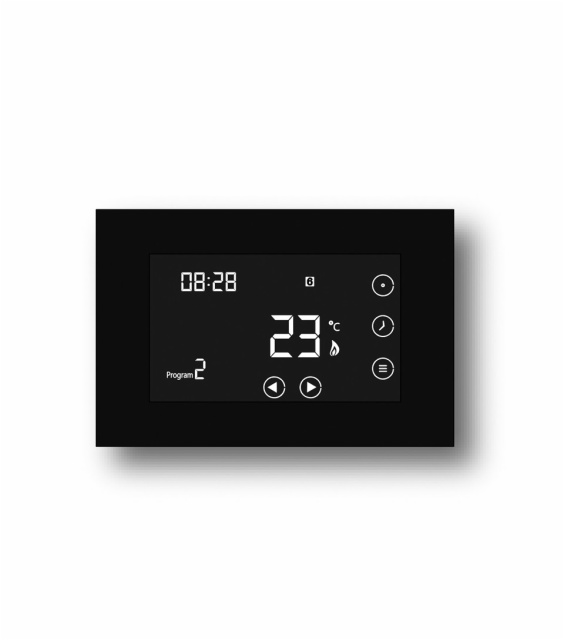

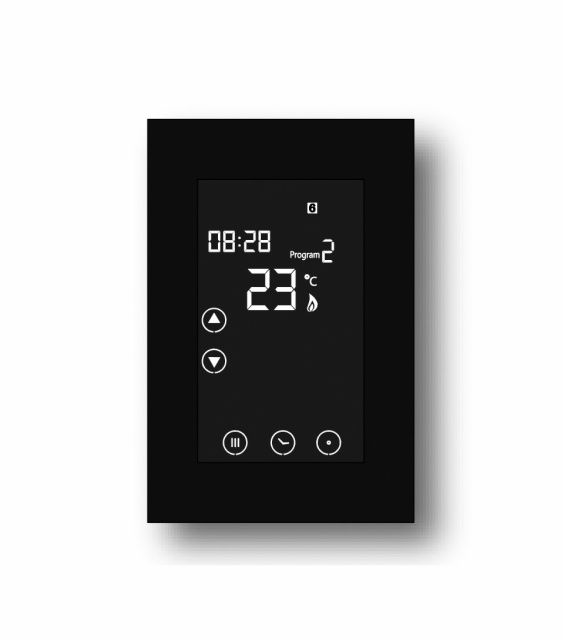

The TR220 series thermostat range brings a sleek, intuitive touchscreen interface and flexible programming to underfloor heating and heated towel rails. Designed with clear icons, seven-day scheduling, and energy-saving features. Available in Standard, Dual, Wifi, and Wifi/Dual models in white,silver and black.

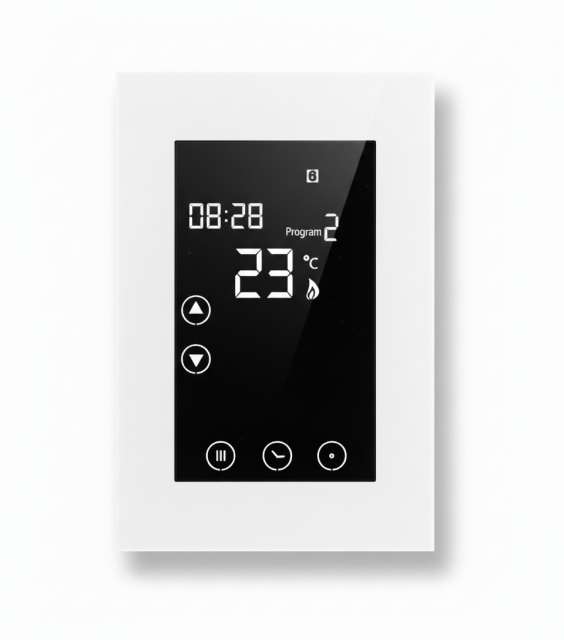

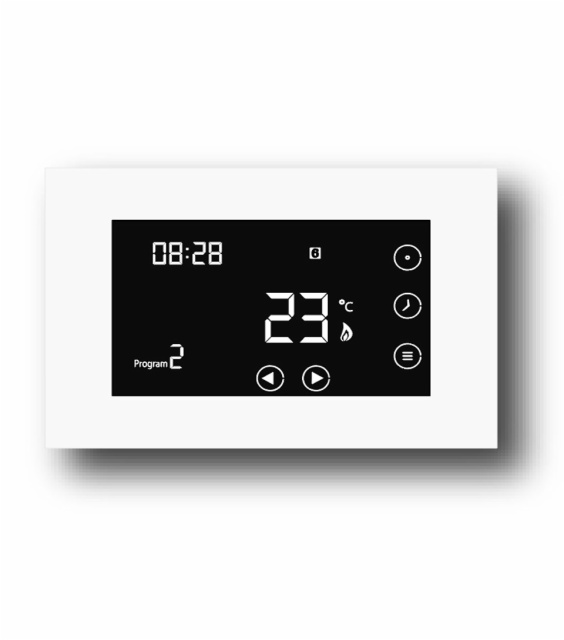

It can be installed vertically or horizontally. So no need to stock vertical models and horizontal models separately.

A / AF/ F models all in one

Combination of 3 models;

A - Air only, with built-in sensor;

F - Floor only,controls floor temperature;

AF - Controls air temperature with ability to limit the floor temperature

Each thermostat is equipped with built-in sensor and a 3 meter floor sensor.

The floor sensor can be extended.

Technical Data

Supply voltage: 230vac / 24vac optional

Ouput switching capability: 16A resistive

Temp range:5~35 deg C

Floor range: 5-40 deg C

Ambient temp:0~+40 deg C

On/off differential:0.5 deg C

Protective Housing: IP20

Housing material: PC+ABS

Sensor type: NTC(10K ohm)

Approvals: CE

Warranty: 2 years
