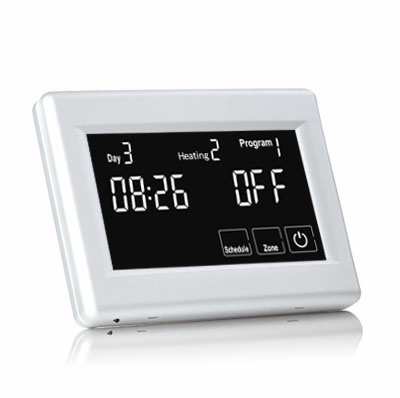

TST-2 : 2 channel touch screen programmable time switch
2 switched outputs, 2A switching capacity.
TST-3 : 3 channel touch screen programmable time switch
3 switched outputs, 2A switching capacity.
230VAC
Touch screen
ZONE names option in menu:
TST-2: 00= Heating 1, DHW ; 01= Channel 1, Channel 2
TST-3: 00= Heating 1, Heating 2, DHW ; 01= Channel 1, Channel 2, Channel 3
5+2 /7 Day program mode
Auto - Automatic mode, the timeswitch executes the preprogrammed schedules.
Manual mode - the timeswitch maintains a constant output status manually set by the user.
Wiring diagram
