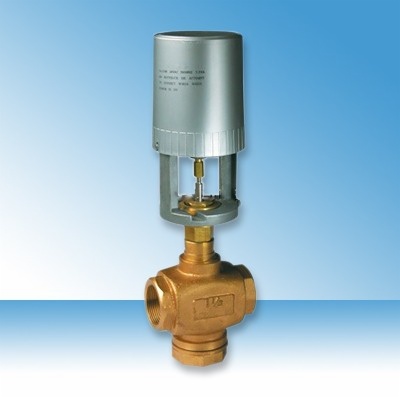

Motorized Globe Valve VB-3000

Item Code:VB-3000 Features:accurately regulate the flow of water in response to the demand of a controller in HVAC system
  • Description
  • User Manual
  • Brochure

VB-3200/VB-3300 is a series of 2-way and 3-way valves intended for use in heating and cooling systems.
Suitable for hot and chilled water.

Technical data
Valve type....................2- way/3-way control valve
Pressure class...............................PN 16 (250 psi)
Flow characteristic.........Equal Percentage (Eq%)
Connection..........................................inner thread
Leakage....................................... <0.05% of KVS
Sizes from DN15 up to DN65
Female threaded
Cast copper body(stainless steel body optional)
Fluid temperature -10 to 95°C







Model





Port

Dimension

Flow Rate

(KV)

Max Pressure

Difference

(Mpa)

Valve

stem

stroke

VB3200-DN25

2-way

25

8

1.0

20

VB3200-DN32

2-way

32

16

0.75

20

VB3200-DN40

2-way

40

25

0.5

20

VB3200-DN50

2-way

50

40

0.3

20

VB3200-DN65

2-way

65

63

0.2

20

VB3300-DN25

3-way

25

8

1.0

20

VB3300-DN32

3-way

32

16

0.75

20

VB3300-DN40

3-way

40

25

0.5

20

VB3300-DN50

3-way

50

40

0.3

20

VB3300-DN65

3-way

65

63

0.2

20
