differential pressure switch IB6021

Item Code:IB6021 Features:air differential pressure switch used as a flow switch in ventilation ducts to control differential pressure and monitor filter
  • Description
  • User Manual
  • Brochure

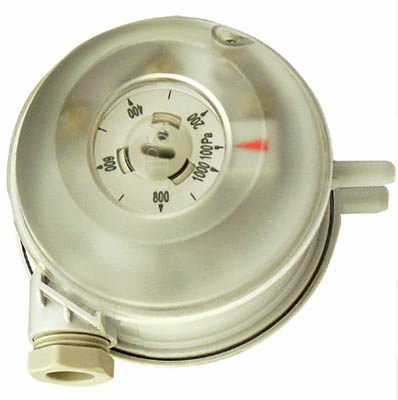

air differential pressure switch



These pressure controllers are used as a flow switch in
ventilation ducts to control differential pressure and monitor filter
condition, provide fan status, or to control air dampers.
With the switchs individually calibrated knob, you can set the
switching point without using a pressure gauge. The switch
includes a multi-position mounting bracket and tubing, duct
nipples, and screws.



* Switching point visible through
* transparent cover
* IP54 housing
* Easy installation
* Single cover fixing screw
* Connection kit supplied
*Integral cable gland with strain relief



pressure range:

20~200Pa;

30~300Pa;

50~500Pa;

100~1000Pa.

500~2000Pa
