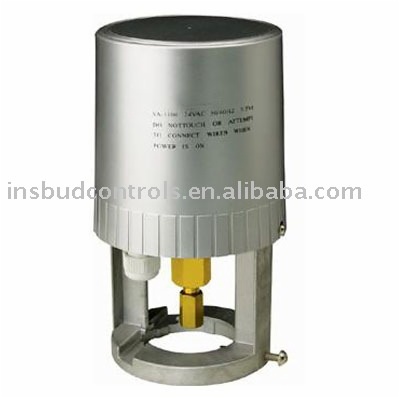

VA-3000 series actuator is electronic mechanic product, and can be directly mounted on VB-3000 series valves.
It can also be mounted on other valves with different connectors.

Features

A low AC voltage reversible synchronous motor, with a magnetic clutch to ensure the long life service of the motor and gear train.
Action is executed through gear transmission.
Valve-moving position indicator.
An auxiliary switch and manual control are available as accessories (order separately)
RA or DA operating mode could be selected through jumper in proportional 0~10V or 4~20Ma DC control

Specifications

Supply voltage: 24VAC

Transformer sizing: 5.5VA

Connection cable: 1.5mm
Actuator color: yellow(silver also available)
Input signal range: 0~10V/4~20mA
Actuator force: 500N; 1000N

Gear: Stainless steel, bronze
Support Base : Galvanized steel
Yoke: Die cast aluminium
Housing: Anti-flammable ABS
Operation temperature: -5~+55°C
Storage temperature: -20~+65°C

Operation

Actuator is driven by reversible synchronous motor with magnetism clutch. Motor can create stable torsion at stopping condition depending on the magnetism effort, which is created by motor rotor and magnetism clutch. And the motor can stop at any position when there is no current pass through.

Models

Model          control signal          actuator force

VA-3100         3 point                     500N

VA-3101        4~20mA                   500N
VA-3102         0~10V                     500N

VA-3200         3 point                     1000N

VA-3201         4~20mA                   1000N
VA-3202          0~10V                     1000N
