Heated towel rail timer / dimmer TR312

Item Code:TR312 Features:A warm dry towel when you need one; Saves you power and money; Simple to install; No programming required; Electronic accuracy - no buzzing or ticking; Concealed in the wall behind the switch plate; Suitable for all heated towel rails; Kinder to the environment
  • Description
  • User Manual
  • Brochure

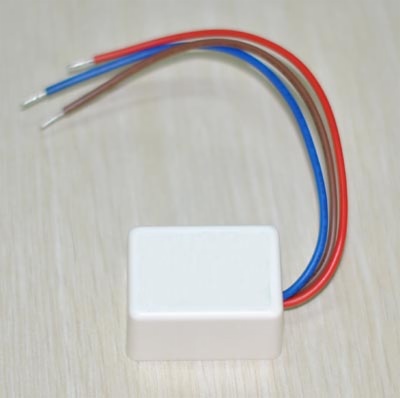

The Eco Timer is a simple timing device designed to go behind a switch plate. The timer operates on a 12 hour
schedule meaning it will be on at the same time morning and evening each day of the week. The programmed time
can be selected for a period from 1 to 11 hours and three heat settings can be selected: 50%, 75% or 100%.

Technical Data

Input:  220v -240v AC, 50/60Hz

Max Load: 1Amp

No load device power： less than 1watt

Operating temperature: -10 to 40 centigrade

IP Rating: IP20



Programming the timer

The timer needs to be programmed at the time you want the heated towel rail to turn on i.e. if you want the rail to
turn on at 6 o’clock you need to program it at either 6:00AM or 6:00PM.
Turn the switch on and listern to the beeps – each beep represents one hour. Turn the switch off after the number of
hours you want it on for. i.e if you want it on for 4hrs switch it off after 4 beeps.
Turn the switch back on straight away and the timer will confirm with beeps the number of hours selected i.e. if you
have selected 4hrs, it will beep 4 times after switching back on.
This is followed by a single, double and then a triple beep to set the heat setting.
1 beep = 50%
2 beeps = 75%
3 beeps = 100%
To select 50% turn off and then on again after the single beep. To select 75% turn the switch off and then on after
the double beep. For full power do not touch the switch after the triple beep.
