Programable Fan coil room thermostat

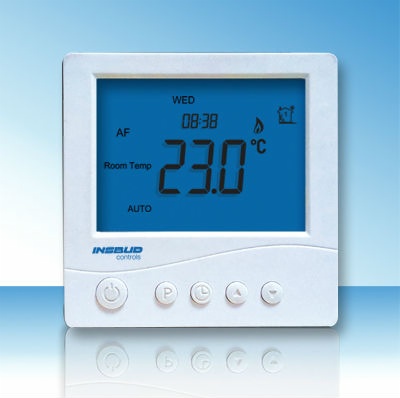

TR3100HC4P Room Thermostat for 4 pipe fan coil units


This thermostat offers 3 modes of operation(Heat ,Cool, Auto)
and it is ideal for 2 and 4 pipe systems control. It provides a
three speed fan output which can be set to manual or
automatic mode.

Heating: Thermostat controls only the heating system.
Cooling: Thermostat controls only the cooling system.
Automatic: Thermostat automatically selects heating or
cooling depending on the indoor temperature. A dead band
setting is programmed ensuring there is no conflict
between the heating and cooling.

Heating: if thermostat is set to heat

Mo-Fr.   7:00-9:30 target room temperature 22°C

Mo-Fr.  9:30-16:30 target room temperature 16°C

Mo-Fr. 16:30-22:30 target room temperature 22°C

Mo-Fr. 22:30-7:00 target room temperature 16°C

Sa-Su. 7:00-9:30 target room temperature 22°C

Sa-Su. 9:30-16:30 target room temperature 16°C

Sa-Su. 16:30-22:30 target room temperature 22°C

Sa-Su. 22:30-7:00 target room temperature 16°C

Cooling: if thermostat is set to cool

Mo-Fr. 7:00-9:30 target room temperature 24°C

Mo-Fr. 9:30-16:30 target room temperature 28°C

Mo-Fr. 16:30-22:30 target room temperature 24°C

Mo-Fr. 22:30-7:00 target room temperature 25°C

Sa-Su. 7:00-9:30 target room temperature 24°C

Sa-Su. 9:30-16:30 target room temperature 28°C

Sa-Su. 16:30-22:30 target room temperature 24°C

Sa-Su. 22:30-7:00 target room temperature 25°C

The above settings are default factory setpoints, can be adjusted

according to users' special needs.

Features:

Large LCD display
Blue back-lit (Turns off after 30 seconds)
Flush mounting
C/F temperature format selection
Heating, Cooling and Automatic modes available

Individual day programs that repeat weekly

Fan speed: Auto, High, Medium, Low
Heating Output
Cooling Output
Frost protection
Easily increase or decrease the set temperature
Temperature range 5°C - 35°C
Supply: 230v / or 110v ,24v optional
Outputs: 230v / or 110v,24v optional

Wiring Diagram

Dimension

Technical Data
Supply voltage: 230vac
Ouput switching capability: 16A resistive
Temp range:5~35 deg C
Floor range: 5-40 deg C
Battery backup: 1x Cr1220 3V
Ambient temp:0~+40 deg C
On/off differential:0.5 deg C
Protective Housing: IP20
Housing material: PC+ABS
Sensor type: NTC(10K ohm)
Approvals: CE
Warranty: 2 years

Packing details:

1pc/inner box, 100pcs/carton

Carton size: 55*42*40cm
